FANUC CNC CONTROL RETROFIT ON A SHEFFIELD CRUSH GRINDER

small picture frame Click picture for close up view

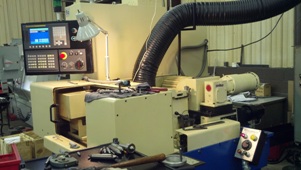

This is a Sheffield Crush Grinder with a Fanuc 0i-TD.

Sheffield Crush Grinder Fanuc 0i-TD CNC Retrofit
This is a Sheffield Crush Grinder with a Fanuc 0i-TD control retrofit.
line under picture

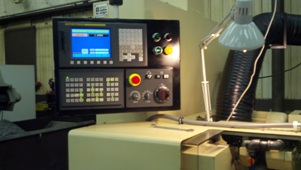

This is a close-up of the operator control panel

Sheffield Crush Grinder Fanuc 0i-TD CNC Retrofit
This is a close-up of the Fanuc operator control panel
line under picture

This is the Dresser Parameter custom screen.  Enter dressing process data in the fields aside the function description.

Sheffield Crush Grinder Fanuc 0i-TD CNC Retrofit Custom HMI Screen
This is the Dresser Parameter custom screen. Enter dressing process data in the fields beside the function description.
line under picture

This is the Grind Parameter custom screen.  Enter grind process data in the fields aside the function description.

Sheffield Crush Grinder Fanuc 0i-TD CNC Retrofit Custom HMI Screen
This is the Grind Parameter custom screen. Enter grind parameters in the fields beside the function description.
line under picture

This is the Grind Parameter Limits custom screen.  Enter grind process limits data in the fields aside the function description.

Sheffield Crush Grinder Fanuc 0i-TD CNC Retrofit Custom HMI Screen
This is the Grind Parameter Limits custom screen. Enter grind process limits data in the fields beside the function description.
line under picture

This is the Workhead Position Screen.  This is the screen normally viewed during process.

Sheffield Crush Grinder Custom HMI Screen
This is the Workhead Position Screen. This is the screen normally viewed during process.
